---------------------产品详情-------------------------

10D40-3CGA1AA0A5AA+M1

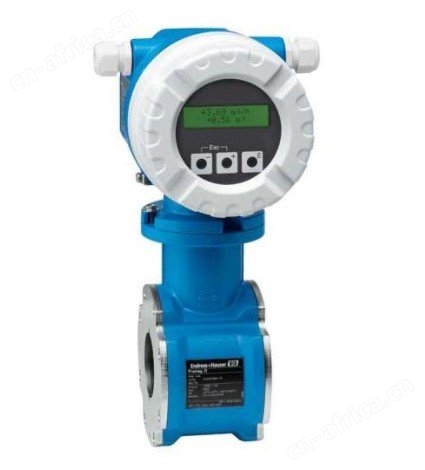

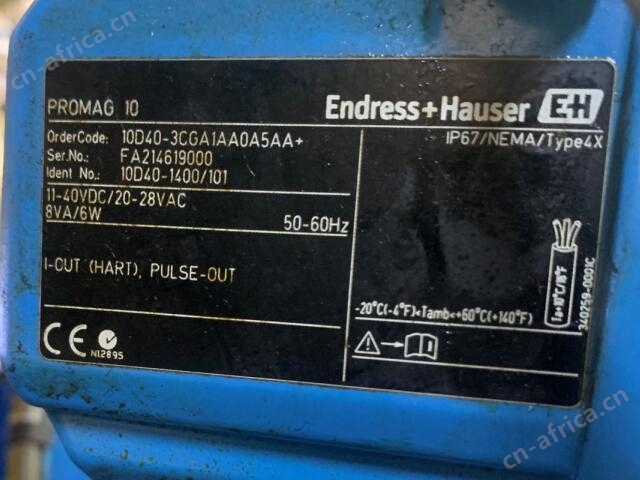

Endress + Hauser 10D40-3CGA1AA0A5AA+M1

Electromagnetic flowmeter
10D40-10Q9/101

Endress Hauser 10 D40

3 Liner: Polyamide
C Process Connection: PN16, EN1092-1 (DIN2501)
G Electrodes: 14435/316L bullet nose
A Calibration: 05%
1 Additional Test, certificate: w/o
A Approval: Non-hazardous area
A Housing: Compact Alu, IP67 NEMA4X
0 Cable, Remote Version: Not used
A Cable Entry: Glａnd M20
5 Power Supply; Display: 20-28VAC / 11-40VDC; 2-line, push buttons
A Adjustment; Software Feature: Factory setup; basic version
A Output, Input: 4-20mA HART + pulse passive
M1 >Mounting kit enclosed steel zinc coated threaded bolt, nut, washer, EPDM flange seal
Details: Language: English
Assign line 1: Volume flow
Assign line 2: Totalizer 1
Assign current output: Volume flow
Current span: 4-20 mA HART NAMUR
Value 20 mA: dm3/min
Time constant: 100000 s
Assign pulse output: Volume flow
Pulse value (per pulse): 150000 dm3
Pulse width: ms
Output signal: Passive – negative
Failsafe mode current/pulse output: Min value
Assign totalizer 1: Volume flow
Unit totalizer 1: dm3

---------------------其他型号-------------------------

10D65-6CGA1AA0A5AA+M1

Endress + Hauser 10D65-6CGA1AA0A5AA+M1

6 Liner: Polyamide, ACS Drinking water approval
C Process Connection: PN16, EN1092-1 (DIN2501)
G Electrodes: 14435/316L bullet nose
A Calibration: 05%
1 Additional Test, certificate: w/o
A Approval: Non-hazardous area
A Housing: Compact Alu, IP67 NEMA4X
0 Cable, Remote Version: Not used
A Cable Entry: Glａnd M20
5 Power Supply; Display: 20-28VAC / 11-40VDC; 2-line, push buttons
A Adjustment; Software Feature: Factory setup; basic version
A Output, Input: 4-20mA HART + pulse passive
M1 >Mounting kit enclosed steel zinc coated threaded bolt, nut, washer, EPDM flange seal
Details: Language: English
Assign line 1: Volume flow
Assign line 2: Totalizer 1
Assign current output: Volume flow
Current span: 4-20 mA HART NAMUR
Value 20 mA: dm3/min
Time constant: 100000 s
Assign pulse output: Volume flow
Pulse value (per pulse): 500000 dm3
Pulse width: ms
Output signal: Passive – negative
Failsafe mode current/pulse output: Min value
Assign totalizer 1: Volume flow
Unit totalizer 1: dm3

10D40-4CGA1AA0A5AA+M1

Endress + Hauser 10D40-4CGA1AA0A5AA+M1

4 Liner: Polyamide, NSF 61 Drinking- + warm water approval
C Process Connection: PN16, EN1092-1 (DIN2501)
G Electrodes: 14435/316L bullet nose
A Calibration: 05%
1 Additional Test, certificate: w/o
A Approval: Non-hazardous area
A Housing: Compact Alu, IP67 NEMA4X
0 Cable, Remote Version: Not used
A Cable Entry: Glａnd M20
5 Power Supply; Display: 20-28VAC / 11-40VDC; 2-line, push buttons
A Adjustment; Software Feature: Factory setup; basic version
A Output, Input: 4-20mA HART + pulse passive
M1 >Mounting kit enclosed steel zinc coated threaded bolt, nut, washer, EPDM flange seal
Details: Language: English
Assign line 1: Volume flow
Assign line 2: Totalizer 1
Assign current output: Volume flow
Current span: 4-20 mA HART NAMUR
Value 20 mA: dm3/min
Time constant: 100000 s
Assign pulse output: Volume flow
Pulse value (per pulse): 150000 dm3
Pulse width: ms
Output signal: Passive – negative
Failsafe mode current/pulse output: Min value
Assign totalizer 1: Volume flow
Unit totalizer 1: dm3

10D50-7CGA1AA0A4AA+M1

Endress + Hauser 10D50-7CGA1AA0A4AA+M1

7 Liner: Polyamide, WRAS BS6920 Drinking water approval
C Process Connection: PN16, EN1092-1 (DIN2501)
G Electrodes: 14435/316L bullet nose
A Calibration: 05%
1 Additional Test, certificate: w/o
A Approval: Non-hazardous area
A Housing: Compact Alu, IP67 NEMA4X
0 Cable, Remote Version: Not used
A Cable Entry: Glａnd M20
4 Power Supply; Display: 85-250VAC; 2-line, push buttons
A Adjustment; Software Feature: Factory setup; basic version
A Output, Input: 4-20mA HART + pulse passive
M1 >Mounting kit enclosed steel zinc coated threaded bolt, nut, washer, EPDM flange seal
Details: Language: English
Assign line 1: Volume flow
Assign line 2: Totalizer 1
Assign current output: Volume flow
Current span: 4-20 mA HART NAMUR
Value 20 mA: dm3/min
Time constant: 100000 s
Assign pulse output: Volume flow
Pulse value (per pulse): 250000 dm3
Pulse width: ms
Output signal: Passive – negative
Failsafe mode current/pulse output: Min value
Assign totalizer 1: Volume flow
Unit totalizer 1: dm3
